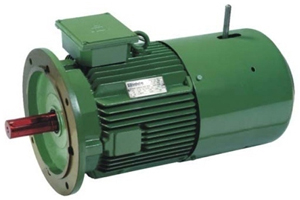

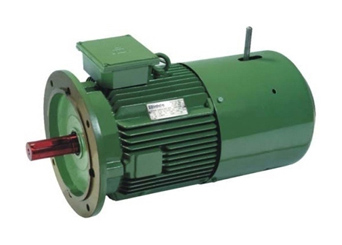

Crane Duty Motors are specially designed for frequent starts/stops & reversing required in ther cranes & lifts of all types. They can also be used in application such as - material handling, weirs & sluices, auxilary motors in rolling mills or wherever intermittent drives are required.
KW : 0.18 to 200.0 kW
Pole : 4P, 6P & 8P
Mounting : B3, B5, & B14 & combinations
Frame : 71 to 315LX
Voltage : 415v+10% or as required
Frequency : 50Hz.+5% or as required
Ambient : 50oC.
Altitude : Upto 1000m above msl
Rotor type : Squirrel cage aluminium die cast
Enclosure : Totally enclosed fan cooled (TEFC)
Protection : IP55
Ins. class : Class F insulation with temp. rise limited to class B.
Duty cycle : S3, S4 & S5
