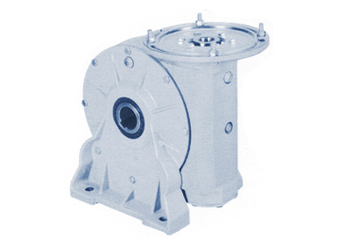

Worm Gear Motors

Worm Gear Motors

A smart design enhanced by latest materials technology and advanced manufacturing


Worm Gear Motor is a milestone for the industry worldwide. They succeeded in combining uncompromising quality with state-of-the-art technology and renown price effectiveness. Absolute flexibility is given by the wide choice of several mounting options, shaft configurations and motor interface, all offered as standard. The helical-worm and the double-worm version, with or without the torque limiter, also add up, creating a highly versatile drive system.

Torque Range :

13 to 9200 Nm

Mechanical rating (n 1 = 1400 min -1) :

0.04 to 75 kW

Gear ratios :

7 to 10000

Output :

» Keyless shrink disc fitting
» Plug-in solid output shaft
» Torque limiter as an option

Reduced Backflash Available On Request

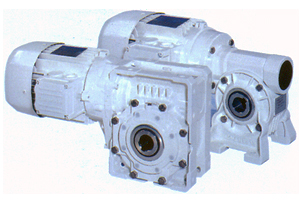

Gearmotors for Hostile Environments


Gearmotors for Hostile Environments

When multi-purpose products become specific and meet industry requirements.


Wormgears and motors are also available in the enhanced protection "EP" configuration, featuring food grade specifications and extra corrosion protection, ensuring risk free operation in hygienic environments, and facilitate effective sanitising. In addition to food processing applications, the EP configuration will also suit the requirements of the chemical and pharmaceutical industry, as well as marine on-board and quayside installations.

Applications :

» Food processing, Chemical and Pharmaceutical Industry
» Marine on-board and quayside installations
» Corrosive and / or highly Hygienic Environments

Availability on :

» Gears : VF 44, VF 49, W 63, W 75, W 86
» Motors : BN 63 to BN 112 / M1SD to M3LC
