Teltonika Industrial Ethernet Switches

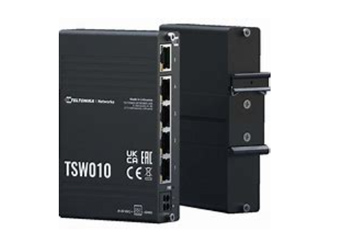

A) TSW010 – 5-Port Ethernet Switch

Affordable | Compact | Industrial-Grade
The TSW010 offers a simple, cost-effective solution to extend Ethernet connectivity in professional environments. With five 10/100 Mbps ports, this unmanaged switch is ideal for industrial applications where high-speed throughput isn't critical.

Plug & Play – No configuration required
Wide Voltage Range – Operates on 9–30 VDC
DIN Rail & Wall Mounting – Easy to install anywhere
Compact & Rugged – Anodized aluminum housing

Key Specs :

Ports : 5 x 10/100 Mbps RJ45
Power Supply : 2-pin DC socket (9–30 VDC)
Power Use : Idle 0.3 W / Max 0.9 W
Temp Range : –40 °C to 75 °C
Housing : IP30-rated anodized aluminum
Dimensions : 113.1 x 27.4 x 80.5 mm
Weight : 146.5 g
Performance :
• Bandwidth : 1 Gbps
• MAC Table : 2K entries
• Jumbo Frames : 2048 bytes
• Processing : Store-and-Forward

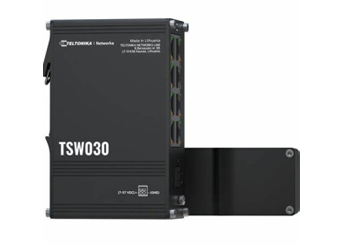

B) TSW030 – 8-Port Ethernet Switch

Power-Efficient | Robust | Plug & Play

The TSW030 is a rugged unmanaged switch offering eight 10/100 Mbps Ethernet ports and extremely low power consumption. It’s engineered for plug-and-play integration into industrial systems that need multiple Ethernet connections.

8 x RJ45 Ports – For multiple device connectivity
Ultra-Low Power Use – Just 0.5 W (idle)
DIN Rail Ready – Mounts seamlessly in control cabinets
Industrial-Grade Build – For harsh environments

Key Specs :

Ports : 8 x 10/100 Mbps RJ45
Power Supply : 2-pin DC socket (7–57 VDC)
Power Use : Idle 0.5 W / Max 1.5 W
Temp Range : –40 °C to 75 °C
Housing : IP30-rated anodized aluminum
Dimensions : 113.1 x 41.2 x 74.6 mm
Weight : 256 g
Performance :
• Bandwidth : 20 Gbps
• MAC Table : 2K entries
• Jumbo Frames : 9216 bytes
• Packet Buffer : 128 KB
