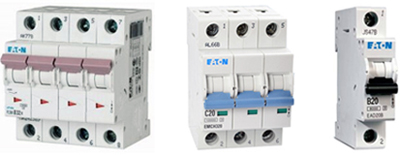

Range : PLSM/PLHT/PLS6 DC
Contact position Indicator : Red / Green
Rated Current : 0.5 A To 63A To 125 A
Rated Voltage : AC 230/400VDC48V/60V/250V
Full Range Of Accessories : Shunt UV, auxiliary Switch, Trip Contact, Remote Operation Connection as per polarity marking on the product

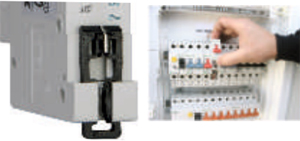

3 Position Mounting Clip : Easy & Quick Maintenance


3 Position Mounting Clip

Allows installation & removal of MCB / other modular devices without removing the busbar and other devices.



Insulated Sliding Shutter : Safe and Secure Termination



Insulated Sliding Shutter

» Acts as guide for quick and secure termination
» Makes it impossible for wire to miss the terminal while wiring
» Insulated shutter prevents accidental contact - enhanced safety and system reliability



Contact Position Indicator :



Contact Position Indicator

» Safe to operate, always Enables visual indication of true position of main contacts
» Ensure high degree of safety during fault conditions : Welded Main Contact / Dolly Free
» True Contact Indication



Bi Connect Terminals: Ease of Wiring :



Bi Connect Terminals: Ease of Wiring

» Allows secure termination of busbars and cables simultaneously
» Looping possible without danger of loose wiring



Remote Operation and Automatic Resetting :



Remote Operation and Automatic Resetting

» Remote operation
» Automatic restart in the event of undesired tripping



Unique colour for each rating : Appealing Aesthetics and Easy Identification :




Remote Operation and Automatic Resetting

» Colour knobs provided for better aesthetics & designer look when mounted inside acrylic door distribution board.
» The rating of MCB installed is easily identifiable by distinctive dolly colours.

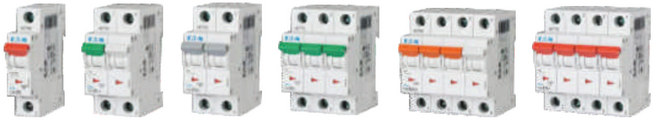

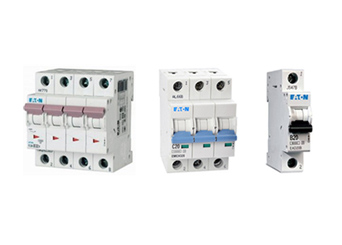

Miniature Circuit Breakers - Type PLSM

Specifications :
» Rated current: 0.5 A to 63 A
» Rated voltage AC: 230/415V, DC: 48V (per pole)
» Rated breaking capacity: 10kA acc. to IEC/EN 60898
» Tripping Characteristics B, C, D
» Low let-through energy
» Bi connect optionally on load or line
» Endurance: 20,000 operations
» Full range of accessories: shunt, UV, auxiliary

Miniature Circuit Breakers

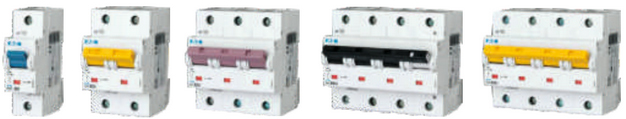

MMiniature Circuit Breakers - Type PLHT

Specifications : » Rated current up to 125A
» Rated Voltage AC: 230/415V, DC: 60V (per pole)
» Rated breaking capacity up to 25kA according to IEC/EN 60947-2
» Tripping characteristics B, C, D
» Accessories: shunt trip, auxiliary switch, anti-tamper device.
» Peak with stand voltage Uimp 4kV
» Endurance: 20,000 operations 2 Terminal Capacity: 2.5 - 50 mm2

Miniature Circuit Breakers



Miniature Circuit Breakers - Type PLS6 DC

Specifications :
» Rated current up to 50A
» Rated voltage DC: 250V per pole, t=4 ms
» 2 poles connected in series DC: 500V
» Rated breaking capacity 10kA acc. to IEC/EN 60947-2
» Tripping Characteristics C
» Connections as per polarity marking on the product
