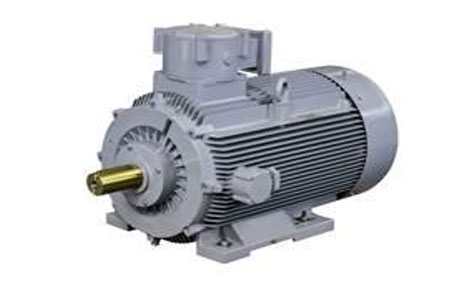

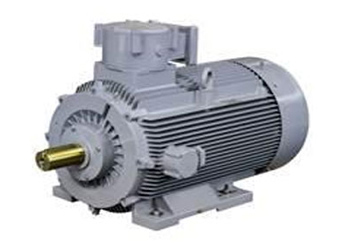

• Multi Speed Motors – Standard & Flameproof

SEND ENQUIRY

Product Specifications
Product Code: 2HS5
Frame Size: 71 to 355LX (Standard), 71 to 315LX (Flameproof)
Power: 0.12 to 150.0 kW
Polarity: 4/2, 8/4, 6/4, 8/6 & others
Mounting: B3, B5, B14 & combinations
Voltage: 415V ±10% or as required
Frequency: 50Hz ±5% or as required
Protection: IP55 or superior on request
Ambient: 50ºC
Altitude: Up to 1000m above m.s.l.
Enclosure: Totally Enclosed Fan Cooled (TEFC)
Ins Class: F
Duty: S1
